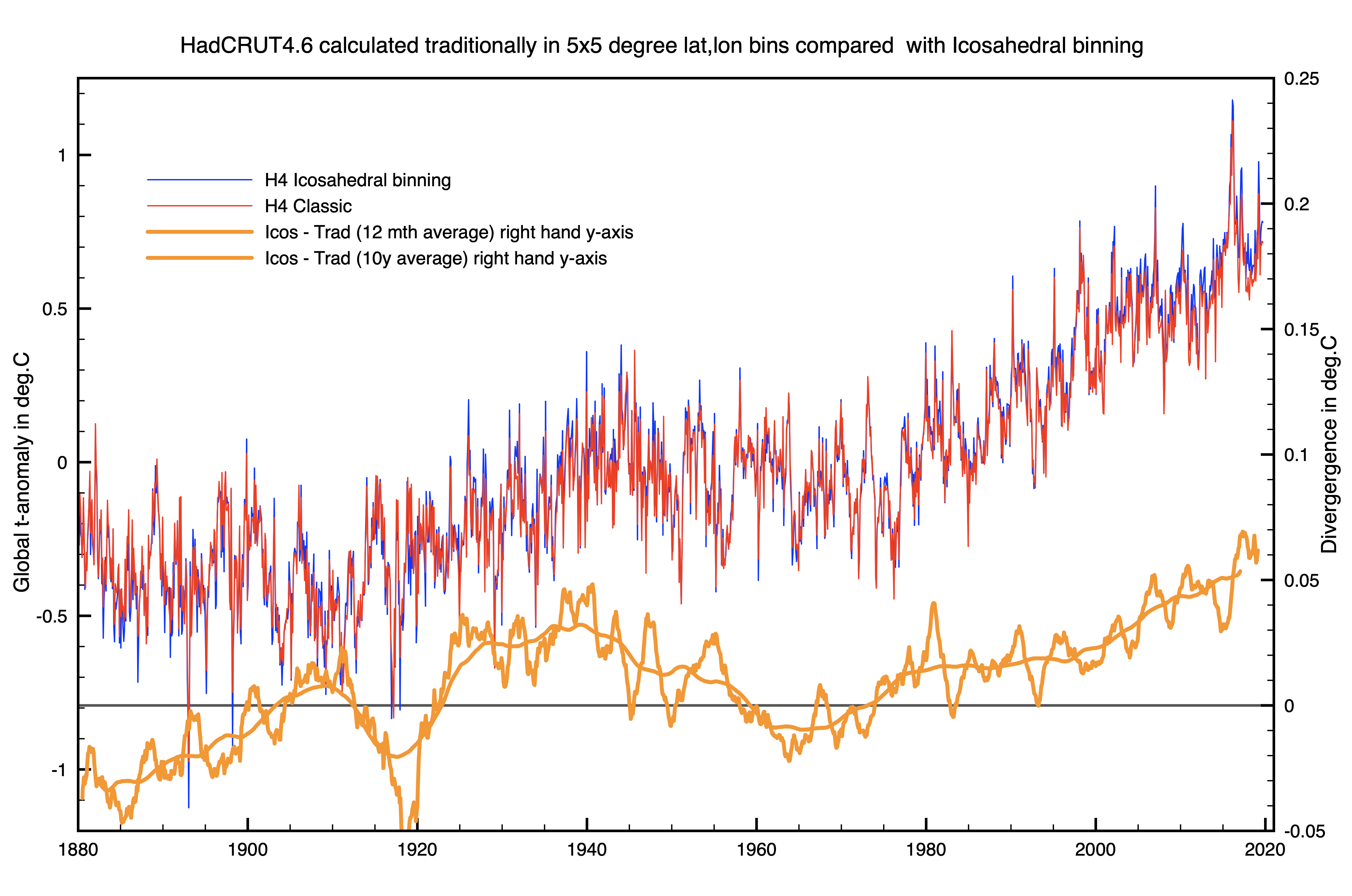

The classic HadCRUT processing calculates average surface temperatures on a 5×5 grid in Latitude and Longitude. To calculate the global average a spatial weighting of cos(Lat) must be applied. The main advantage of using a more complex 3D Icosahedral grid is the resultant regular bin spacing over the earth’s surface. The global average is then simply the average over all occupied bins. In this post I look at differences between the two methods. First here are the monthly global temperature averages compared.
In the early years there is no significant difference because there are less stations outside Europe/North America and very few stations at high latitudes. After 1970 however Icosahedral averaging gives slightly warmer global averages extending up to 0.05C warmer than classic result. This is because relatively more bins near the poles become occupied.
The global average is slightly larger for an Icosahedral grid, reaching 0.06C warmer by 2019 . Figure 3 shows an Arctic view of the spatial distribution for September 2019.
This can be compared with the classic (lat,lon) distribution (taken from Hadley’s website).
The same features are clearly present in both.
Finally we can compare icosahedral binning to the Cowtan & Way (C&W) data. C&W use the same (lat,lon) binning as classic HadCRUT4 but in addition extrapolate the measured data into empty bins using a kriging technique. They justify this procedure by arguing that it “corrects” a coverage bias in temperature anomalies, particularly in the Arctic which is warming relatively faster than elsewhere. My results show that this is not strictly even necessary. Using equal area icosahedral binning avoids this spatial bias without any need to extrapolate temperature measurements into empty cells. Figure 5 compares the 3 methods and shows that icosahedral binning inherently agrees with the C&W simply because it works in 3D.
We can see in figure 5. that there is hardly any difference between C&W and Icosahedral, whereas both diverge from HadCRUT4 by about 0.06C between 1998 and 2019. However I think the most important issue is that you can accurately use just the measured temperature values on a 3D surface, rather than extrapolate into empty regions in 2D. Experimental results should only depend on the measured data. My only remaining problem now is to speed up the algorithm because to calculate all of H4 from scratch currently takes over 12 hours CPU!
The time series can be downloaded here
