The strange case of TCR and ECS

In this post we consider the strange coincidence that the net forcing used by CMIP5 models is essentially the same as CO2 forcing alone. This allows us to derive a value of TCR(Transient Climate Response) just from observational data.  Measuring ECS(EquilibriumClimate Sensitivity) however requires modeling information. We use the average CMIP5 forcing and a model derived “hysteresis” function in order to determine ECS from temperature data. The resulting energy imbalance calculated using these values of ECS and TCR is found to be the same as that derived by other methods.

The net climate forcing is mainly due to changes in anthropogenic GHGs and in aerosols. Something like 20-40% of aerosols are of anthropogenic origin. Aerosols have 3 main effects:

  1. They scatter incoming solar radiation cooling the earth.
  2. They (e.g. black carbon) absorb both incoming solar radiation and surface IR radiation
  3. They help seed clouds formation – net cooling effect.

Energy imbalance Q = F -\lambda\Delta{T}  where \lambda is the aerosol feedback. Models trade off aerosols against Climate Sensitivity to match observed temperatures. Aerosols are essentially the tuning parameter that match GCMs in hindcasts to previous surface temperatures. AR5 admits that they have  “low confidence” in the aerosol-cloud interaction, and the estimated uncertainties are that the net effect of aerosols could even be zero. However, if aerosol forcing is reduced then model sensitivities would be far too high.  I argued in the previous post that climate sensitivity should be defined as the measured temperature change for a measured doubling of CO2. Instead IPCC has defined it as the simulated change in temperature due to CO2 forcing alone, excluding other GHGs and aerosols. The amazing fact however is  that it doesn’t matter! In order for the models to agree with observed temperature rises since 1850 there is a near perfect cancelation between other GHGs and aerosols! Figure 1 shows net CMIP5 forcings compared to a CO2 only forcing.

Fig2: Comparison of a pure CO2 GHG forcing and the CMIP5 avergaed forcings used to hindcast past temperature dependency since 1850.

Fig1: Comparison of a pure CO2 GHG forcing and the CMIP5 averaged forcings used to hindcast past temperature dependency since 1850.

So therefore it doesn’t really matter whether we use GCM models to derive a value for TCR or simply fit the temperature data instead. Let’s do that and derive a value for TCR using

DT = \lambda DS and
DS = 5.3ln(C02/290) where 290 is the CO2 value in 1850.
so DT = \lambda *5.3ln(CO2/290)

For CO2 I take the Mauna Loa data smoothly interpolated back to a value of 290 in 1850. We then fit the temperature data to a ln(CO2/290) term. The result is shown below

logfitco2

A fit of the temperature anomaly data to lambda*5.3ln(CO2/290)

This gives a climate response value \lambda = 0.47 degC/Wm2     therefore

TCR = \lambda *3.7 = 1.7C

A  fit to the temperature data which includes a 60 year natural oscillation, possibly linked to AMO (see recent post by Bob Tisdale) , gives a slightly different result.

Fig 3: Overall fit to 164 years of global temperature data (HADCRUT4)

Fig 3: Overall fit to 164 years of global temperature data (HADCRUT4)

A part of the rapid warming from 1970 to 2000 can be seen as potentially due to the upturn in this oscillation. The CO2 component now has a lower climate response with a \lambda  = 0.41 degC/Wm2  and

TCR = \lambda *3.7 = 1.5C

Figure 1 shows that the effective average forcing from all CMIP5 models has essentially been the same as that from CO2 forcing alone. This means we can derive TCR as defined by IPCC through this coincidence. This remains true now even if the ratio of aerosols to other GHGs were to change in the future. These two  analysis essentially measure a value:

TCR = 1.6 ± 0.2 C   where the error is an estimate of the spread in fits.

Equilibrium Climate Response (ECS)

“ECS is defined as the change in global mean temperature, T2x, that results when the climate system, or a climate model, attains a new equilibrium with the forcing change F2x resulting from a doubling of the atmospheric CO2 concentration.” It is the temperature reached after the earth has restored energy balance following a doubling of CO2.  The observed global temperatures since 1850 are instantaneous measurements while the earth is “warming”. The cause of the delay is because the oceans have a huge thermal capacity. One way to estimate ECS is to “measure” the change in heat content of the oceans \Delta{Q} . Then

ECS = \frac{F_{2x}\Delta{T}}{\Delta{F}-\Delta{Q}}

However there is another way to do it by “measuring” instead the response of the earth to a sudden increase in forcing. I used an old GISS model to measure that inertia from a model  run which instantaneously doubles CO2. The temperature response is shown in figure 4 where the red curve is a fit I made to a (1-e^{\frac{t}{\tau}}) term.



Fig 1: Response temperature curve from a pulse doubling of CO2 in 1958 and fit described i the text

Fig 4: Response temperature curve from a pulse doubling of CO2 in 1958 and fit described i the text

T(t) = T_0 + \Delta{T_0}(1-e^\frac{-t}{15})

This provides a method to derive ECS from the temperature data once the net forcing is known.

where \Delta{T}_{0}  is the equilibrium temperature response to a change in forcing \Delta{S}  .

To calculate the CO2 forcing  I take a yearly increment of

\Delta{S} = 5.3 log (\frac{C}{C_0})  ,     where  C and C0 are the values before and after the yearly pulse. All values are calculated from seasonally averaged Mauna Loa data smoothed back to an initial concentration of 280ppm in 1750.

Each pulse is tracked through time and integrated into the overall transient temperature change using:

\Delta{T}(t) = \sum_{k=1}^N (\Delta{T}_{0}(1 - e^\frac{-t}{15}))

\Delta{T}_{0} was calculated based on different values of ECS.  The results are compared to the observed HADCRUT4 anomaly measurements in Figure 4. The publication of AR5 report allows us to update CMIP5 forcings up to 2013 based on this graph.

WGI_AR5_Fig8-18



The data was extended from 2005 to increase forcing and agree with the data – black curve from AR5. The final net forcing in 2013 is 2.2 W/m2. The code that calculates the temperature for different values of ECS  is available here. Figure 4 shows the temperature response calculated from the model using AR5 forcing for different  values of ECS.

Comparison of H4 to ECS values ranging from 1.5-4C. The thinbk black line is the 5 year running average of anomaly data

Comparison of H4 to ECS values ranging from 1.5-4C. The thick black line is the 5 year running average of anomaly data

Now looking in more detail at recent temperatures where the cumulative effect of past forcing is strongest, we see how unusual the current hiatus in warming appears.

Comparison of ECS with H4 anomalt details since 1960.

Detailed comparison of ECS with H4 temperature anomalies details since 1960. Thick black line is an  FFT smoothing through the temperature anomaly data with a 5 year filter.

Values of ECS > 3 or ECS < 2 are ruled out by the data. The most likely value for ECS consistent with the recent data is apparently slightly less than  2.5C. The longer the hiatus continues the lower the estimate for ECS.

The overall result from this analysis is ECS = 2.3 ± 0.5 C.  The error is really asymmetric so it is more like  +0.5 and -0.3

Let’s see if all this works out as being consistent with the value of TCR that we measured before, and isolate the energy imbalance \Delta{Q}

\frac{ECS}{TCR} = \frac{\Delta{F}}{\Delta{F}-\Delta{Q}}

\Delta{Q} = \Delta{F}(1 - \frac{TCR}{ECS})

= 0.7 ± 0.5 W/m2

This is consistent with other values for \Delta{Q} .

In summary we have shown that there has been a remarkable approximate agreement between pure CO2 forcing and net CMIP5 forcing. This has allowed us to fit the Hadcrut4 temperature anomaly data to derive a value of TCR = 1.6 ±0.2C. The equilibrium climate sensitivity has been measured by using a model derived value for ocean temperature response to forcing of the form \Delta{T}(t) = \sum_{k=1}^N (\Delta{T}_{0}(1 - e^\frac{-t}{15})) . By integrating each annual pulse of  CMIP5 model forcings, we have compared different values for ECS to the Hadcrut4 anomaly data. This hysteresis effect becomes stronger over time so the current hiatus in warming strongly distinguishes between different values of ECS. Values greater than 3C are ruled out as are values < 2C. The best estimate  for ECS based on this method is 2.3 ± 0.5. The values measured values of TCR and ECS are for a total net forcing of 2.2W/m2 with an energy imbalance of 0.7 ± 0.5.





About Clive Best

PhD High Energy Physics Worked at CERN, Rutherford Lab, JET, JRC, OSVision
This entry was posted in AGW, Climate Change, climate science, Science and tagged , , , . Bookmark the permalink.

25 Responses to The strange case of TCR and ECS

  1. Roger Andrews says:

    Clive:

    As you note, the IPCC defines transient climate response as “the average temperature response over a twenty-year period centered at CO2 doubling in a transient simulation with CO2 increasing at 1% per year”.

    But the average temperature response of what? Land surface air temperatures? Lower troposphere temperatures? Ocean surface temperatures? They’re all different. And why an average over 20 years? Why not five years, or thirty? And why a CO2 increase of 1% per year? Would we expect a different TCR at 0.5% per year, or 2% per year?

    The IPCC defines equilibrium climate sensitivity as “the change in global mean temperature that results when the climate system, or a climate model, attains a new equilibrium with the forcing change, resulting from a doubling of the atmospheric CO2 concentration.” Equilibrium is supposedly reached after all the surplus CO2-generated heat stored in the oceans has been released back to the atmosphere, which takes centuries according to the IPCC. But because downwelling long wave radiation penetrates only a few microns into the sea surface there are questions as to whether CO2 adds any significant amount of heat to the ocean. As far as I’m aware the main line of evidence that it does is that the climate models say it does.

    And once again, which particular version of “global mean temperature” are we talking about?

    The whole concept of TCR and ECS is hokey. As shown in the graph I posted on your earlier TCR thread (link below for reference) the CMIP5 RCP8.5 surface air temperature simulations can be fitted almost exactly over a period of 200 years, which is quite long enough for prediction purposes, using a constant climate sensitivity of 2.2C. No TCR or ECS necessary. One size fits all.

    One size fits all for the ocean surface temperature simulations too, except that the size is different (1.5C vs. 2.2C)

    The there’s the question of HadCRUT4, which you (and most others) use to define “global mean temperature”. I don’t want to belabor the point, but HadCRUT4 is an area-weighted average of surface air temperatures over land and SSTs over the oceans, and to get an apples-to-apples comparison you have to area-weight modeled surface air temperatures in land areas and modeled ocean surface temperatures in ocean areas in the same way as HadCRUT4 weights them (which, incidentally, is what the IPCC does in the AR5 graphs). The correct way to do it is to compare modeled land surface air temperatures separately with CRUTEM4 and modeled ocean surface temperatures separately with HadSST3, the two series that are averaged together to construct HadCRUT4, and here’s what we get when we do this.

    ?w=614&h=368

    ?w=614&h=368

    Modeled surface air temperatures don’t show the current warming plateau but otherwise the match with CRUTEM4 isn’t too bad. But the models still can’t replicate HadSST3 ocean surface temperatures despite the massive “corrections” that have been applied to the raw SST data to construct this series (the match with unadjusted ICOADS SST is far worse) If this is the closest the models can come to hindcasting observed temperatures in the oceans, where ninety-nine-point-something percent of the heat in the atmosphere and the oceans is stored, then we’re unlikely to get any meaningful results when we use them to estimate climate sensitivity.

  2. Clive Best says:

    Roger,

    I assume they choose a 20 year period so as to average over “natural variations”. A more cynical explanation would be that they are covering their backsides. Presumably the response is measured by Hadcrut4 – the official global average temperature anomaly, which is supposed to be cover land and ocean. I also guess that only by increasing slowly CO2 does TCR have any meaning – so they take 1% arbitrarily.

    In reality TCR must be mainly caused by past warming and not current CO2 levels. A CO2 pulse released in 1850 must have by now finished its contribution to current temperatures whereas this year’s increase has yet to change surface temperatures much at all.

    This gets even worse for untangling ECS. When I do that by integrating yearly pulses of CO2 and then comparing different values of ECS to H4 data then I get a value for ECS = 2.3. This agrees with your value. This low value is greatly influenced by the fact that there has been no warming for 15 years. This pause is very hard to understand if all that stored heat energy in the oceans has still to come out – where is it ?

    Your approach of comparing CRUTEM4 and HADSST4 separately is interesting. Since oceans are 70% of the earth’s surface they dominate OLR compared to land. However the land warms fast. It would be interesting to compare changes in OLR to see if land could alone balances total increase in CO2 forcing. An increased GHE depends on an energy imbalance.

    cheers.

    • Roger Andrews says:

      Hi Clive:

      First re your comment: “In reality TCR must be mainly caused by past warming and not current CO2 levels. A CO2 pulse released in 1850 must have by now finished its contribution to current temperatures whereas this year’s increase has yet to change surface temperatures much at all.”

      I don’t think past warming comes into it. The radiative forcing impacts of CO2 are instantaneous. Any heat that CO2 prevents from escaping to space is immediately present somewhere in the Earth’s climate system. It doesn’t hang around in some other form and then re-emerge as heat at some later time, or at least not so far as I know.

      The impacts are delayed only if CO2-induced heat gets stored in the oceans and slowly released back to the atmosphere after CO2 levels have dropped or stabilized, which is what ECS is all about. I think the evidence that this happens is so weak that it’s not worth consideration, but it sure bumps up the IPCC’s temperature predictions.

      Residence time also isn’t a consideration. It doesn’t matter how long the CO2 has been in the atmosphere. The concentration at the time is what counts. I’m pretty sure that the RCP scenarios, which estimate CO2 concentrations from emissions scenarios, also take residence time into account.

      Bottom line? If we ignore the speculative impacts of delayed heat releases from the ocean – and the only way of quantifying them is with simulations obtained from climate models that don’t fit observations – there is only one value of climate sensitivity, call it what you will, and we can measure it over any period we like using the delta T and delta CO2 values over this period and watts/sq m = 5.35 ln(C2/C1).

      Assuming, that is, that the delta T was caused by CO2.

      Second on your question: “This pause is very hard to understand if all that stored heat energy in the oceans has still to come out – where is it?”

      Well, it’s gone. It entered the oceans during the rapid increase in solar activity between 1910 and 1950 and left them during the sequence of El Niño/La Niña events between 1976 and 1998, generating a stair-step pattern in the SST, SAT and TLT records that accounts for all of the warming over that period. However, nothing happened during the 2009/2010 El Niño, indicating that the 1997/98 El Niño removed the last of the stored heat. This is why there’s been no warming since then.

      Finally on HadCRUT4. It combines air temperature readings taken about 5 feet above the land surface with SST readings taken anywhere between a few inches and fifty feet below the ocean surface. If we assume a 30/70 split then the average HadCRUT4 reading was taken maybe a foot or two below the ocean surface in a medium consisting of 70% sea water and 30% air bubbles. 😉

      • Clive Best says:

        Roger,

        Yes sorry for the sloppy language. Some portion of the CO2 forcing enters the ocean as heat which only slowly increases temperatures. However this also affects TCR . Otherwise I agree that there is only one climate sensitivity and that is the observed response to CO2 – assuming all natural variations are averaged out. ECS is a model only concept and depends on delayed warming through ocean heat and which evidently the models got wrong since 2000.

        Yes resident time of CO2 is irrelevant. However, suppose that a step increase in CO2 of 10ppm occurred in 1900 inducing a certain heat uptake by the ocean and then CO2 levels remained constant. This heat would have by now warmed the surface to restore energy balance. That is what I am saying. The fact that annualCO2 emissions have increased to reach a total 400ppm just means that the energy balance has slightly increased. However it has increased far less than dumping the full 120ppm of CO2 in one go 10 years ago.

        • Roger Andrews says:

          Clive

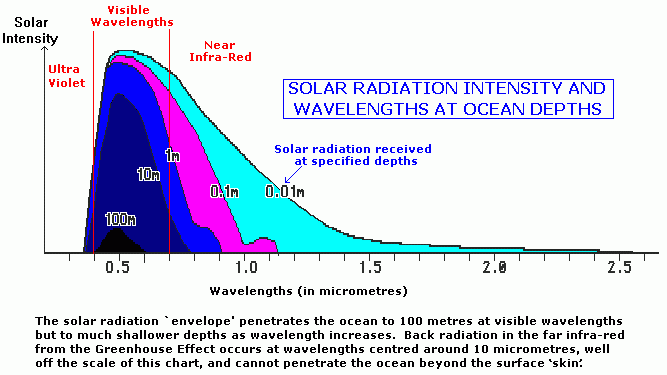

          If CO2-induced back radiation doesn’t warm the ocean there is no such thing as ECS. Here’s an excellent reason to suppose it doesn’t:
